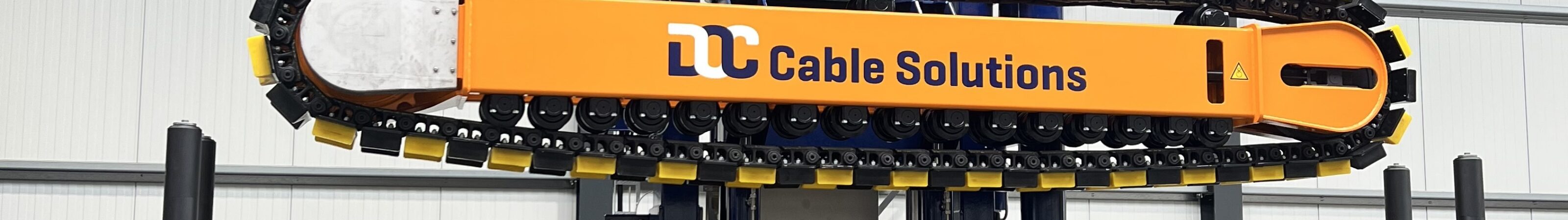

Track Tensioner

Track Tensioner

10T

Equipment Specification

Designed to withstand the toughest conditions.

The 10T Hydraulic Track Tensioner effortlessly handles cables of substantial weight, making it an ideal choice for a wide range of applications.

Safety is paramount when working with heavy equipment and cables. The 10T Hydraulic Track Tensioner comes equipped with advanced safety features to protect both operators and the machinery.

Despite its impressive capabilities, the 10T Hydraulic Track Tensioner is designed for ease of transport and setup.

10 T tensioner 2 IMG 0106

Features

Dedicated track tensioner for on- and offshore cable spooling

Maximum product cable diameter up to 400 mm

Remotely operated

Liftable in one pieces

Technical details

Capacity

10 ton nominal load

Dimensions

6.0 x 2.0 x 3.1 (L x W x H)

Track contact lenght

3259 mm

Weight

12.5 ton

Static break Load

125 kN (min. holding capacity)

Clamping force

6.5 kN --- 260 kN, hydraulic drive

Maximim speed at nominal load

1000 m/hr @ 50 Hz / 1200 m/hr @ 60 Hz

Download Specs
