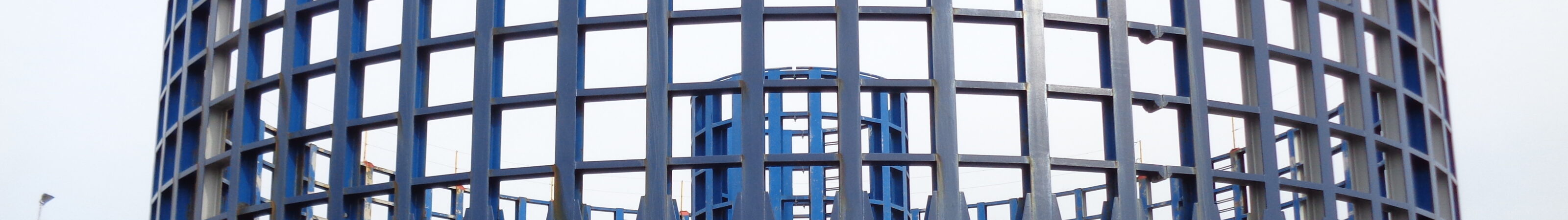

5500 T Osprey Carousel

5500 T

5500 T

26MTR

OFFSHORE BASKET CAROUSEL

Equipment Specification

Our large 5500T offshore carousel is designed for versatility and efficiency. It can be easily mobilized onto any vessel or barge, as the entire unit can be lifted in one piece. For added flexibility, the inner and outer walls can also be extended to fit specific project requirements.

5500 T Transport Carousel 7 5500 T carousel crane set down DB schenker 1

Features

Offshore basket carousel design to suit the offshore wind cable and umbilical markets

Robust grillage design to handle severe vessel or barge motions on sea

Can be offered as carousel only, or with dedicated loading tower and deck tensioner

Technical details

Storage capacity

5500 ton

Outer diameter

26.0 m

Inner diameter

5.0 m

Basket height

6.0 m

Weight empty carousel

600 ton

Drives

4x hydraulic motors equipped with Failsafe brakes

Speed

600 m/hr maximum lay rate

Download Specs

DOC RENTAL OPTIONS

Cable Auxiliary Equipment

Unnamed

Mobile Loading Tower

3T

Compact loading tower that can be stacked up to 4 containers.

Cable Auxiliary Equipment

IMG 0114

Track Tensioner

10T

Track tensioner to suit all types of cable

Cable Auxiliary Equipment

BCE

Bow Cable Engine (BCE)

10T

For loading and unloading carousel and baskets.
